I am currently designing and building a CNC guided plotter to aid me in my work (specifically but not exclusively in regards to my pen drawings). The machine will be driven by an Audrino (running modified GRBL-firmware). I will be 3D-printing some of the main components and manually fabricate the rest. I will keep posting images and videos as the project progresses (I’ve left out a lot of iterations since the page would be flooded with pictures and models if I included everything).
Interactive 3D model
” Despair”
“Adam”

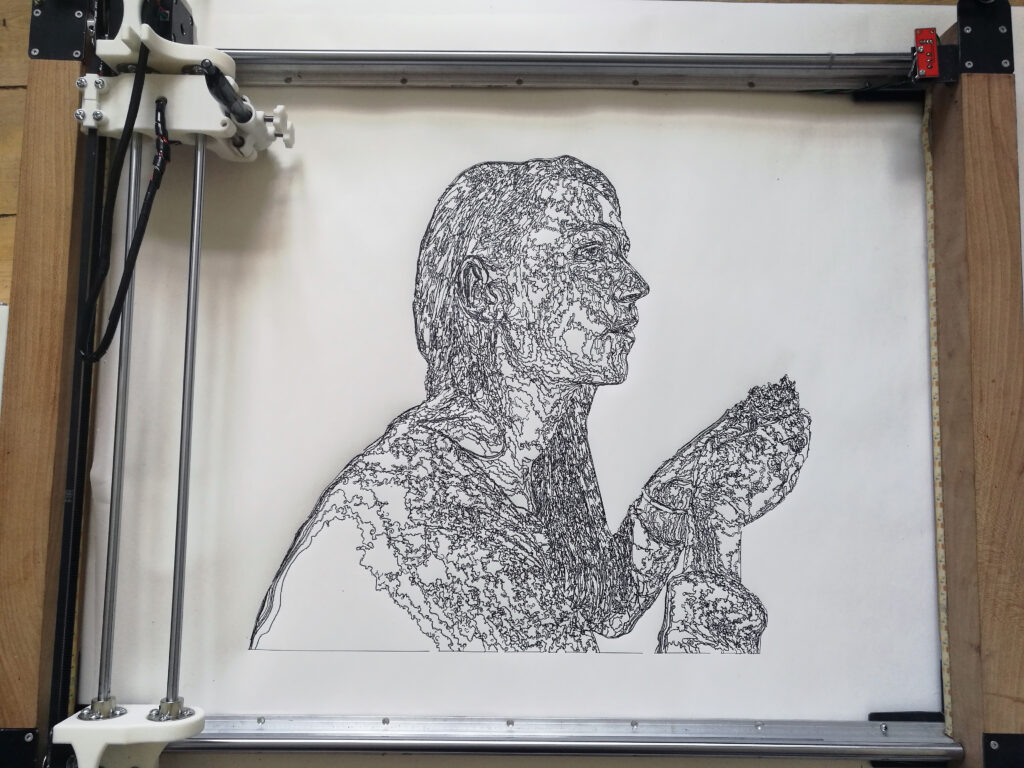

“Kira”
Timelapse #2
Timelapse #1
First test-drawing being drawn
Test drawing in progress
Reference
Building started
Wiring
More wiring
Electronics before the upgraded box
End stops
Wire caos
X-axis initial set up
Test fitting some parts
GBRL-settings:
$0=10 (step pulse, usec)
$1=25 (step idle delay, msec)
$2=0 (step port invert mask:00000000)
$3=1 (dir port invert mask:00000001)
$4=0 (step enable invert, bool)
$5=0 (limit pins invert, bool)
$6=0 (probe pin invert, bool)
$10=3 (status report mask:00000011)
$11=0.010 (junction deviation, mm)
$12=0.002 (arc tolerance, mm)
$13=0 (report inches, bool)
$20=0 (soft limits, bool)
$21=1 (hard limits, bool)
$22=1 (homing cycle, bool)
$23=3 (homing dir invert mask:00000011)
$24=1000.000 (homing feed, mm/min)
$25=1000.000 (homing seek, mm/min)
$26=250 (homing debounce, msec)
$27=5.000 (homing pull-off, mm)
$100=40.000 (x, step/mm)
$101=40.000 (y, step/mm)
$102=250.000 (z, step/mm)
$110=10000.000 (x max rate, mm/min)
$111=10000.000 (y max rate, mm/min)
$112=10000.000 (z max rate, mm/min)
$120=10000.000 (x accel, mm/sec^2)
$121=10000.000 (y accel, mm/sec^2)
$122=10.000 (z accel, mm/sec^2)
$130=425.000 (x max travel, mm)
$131=560.000 (y max travel, mm)
$132=10.000 (z max travel, mm)

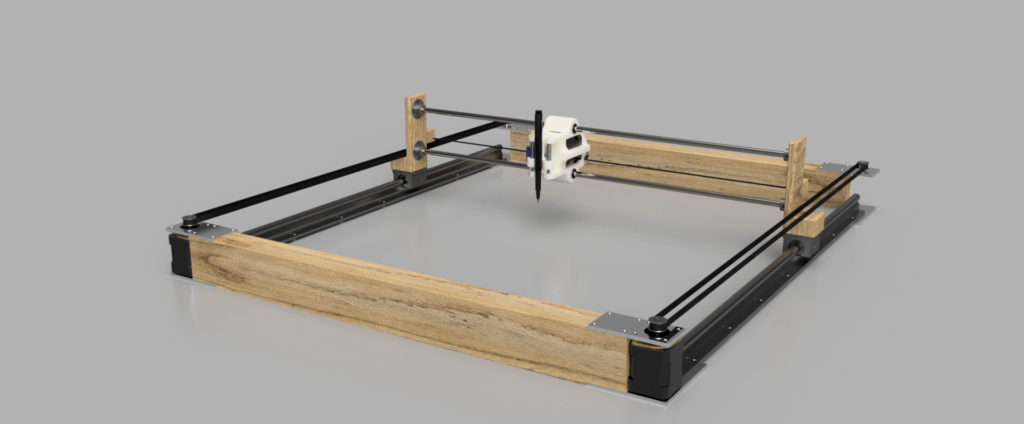

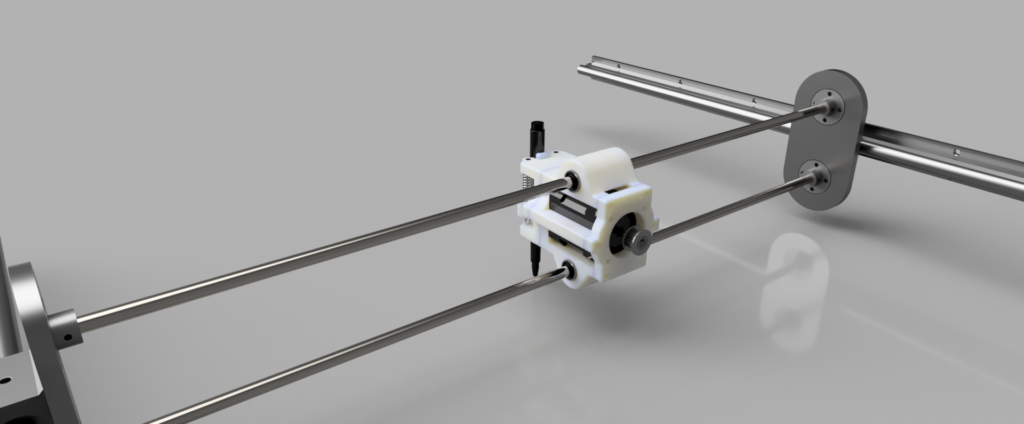

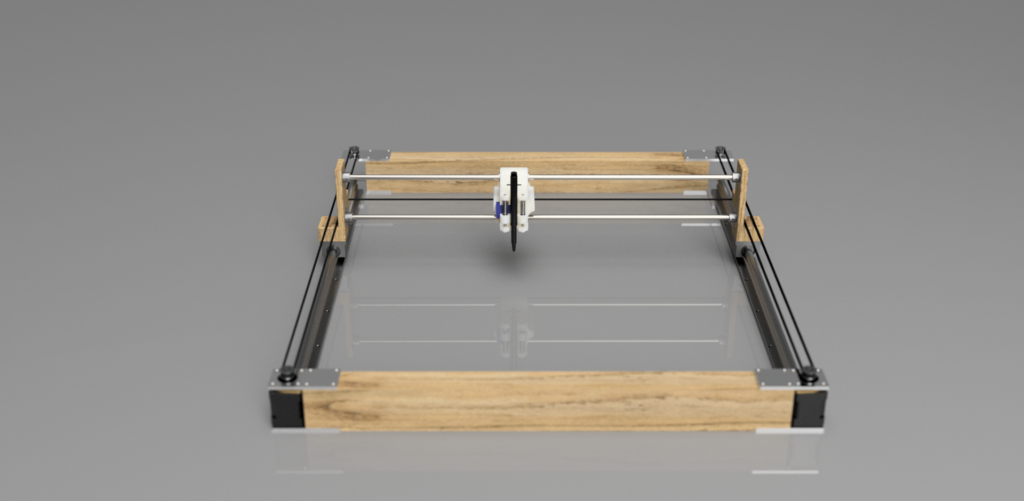

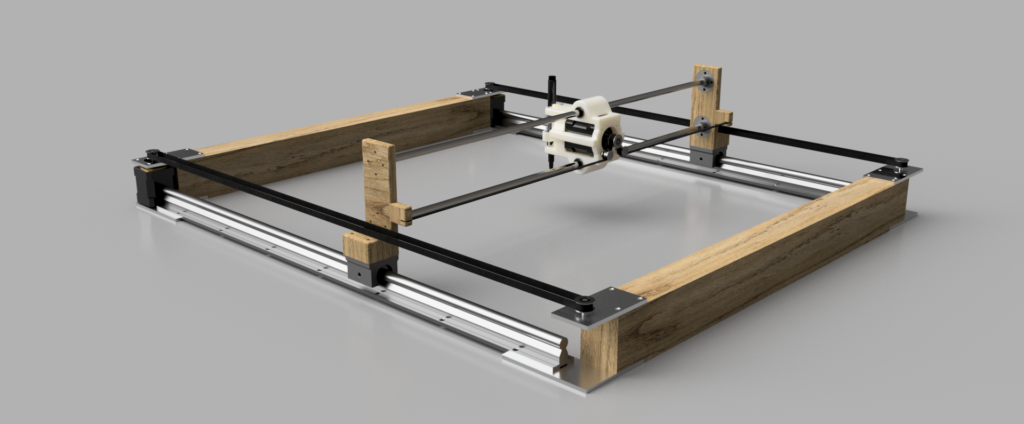

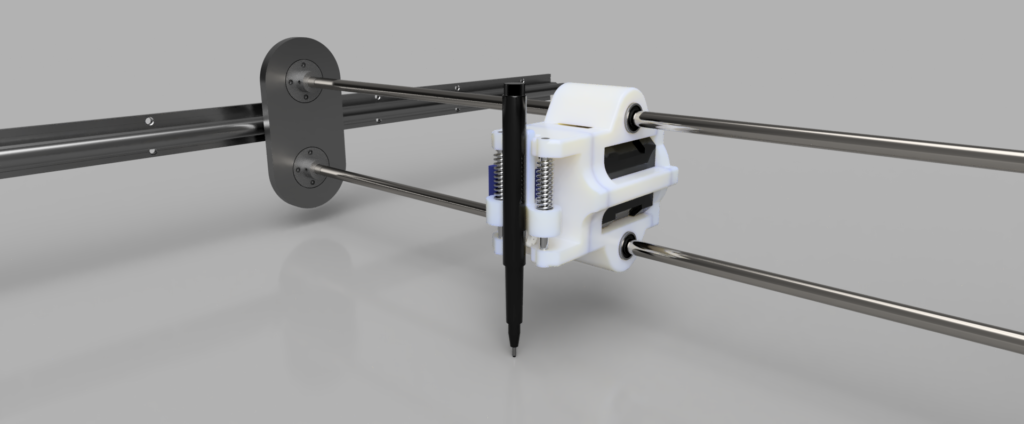

3D Renderings of different early designs

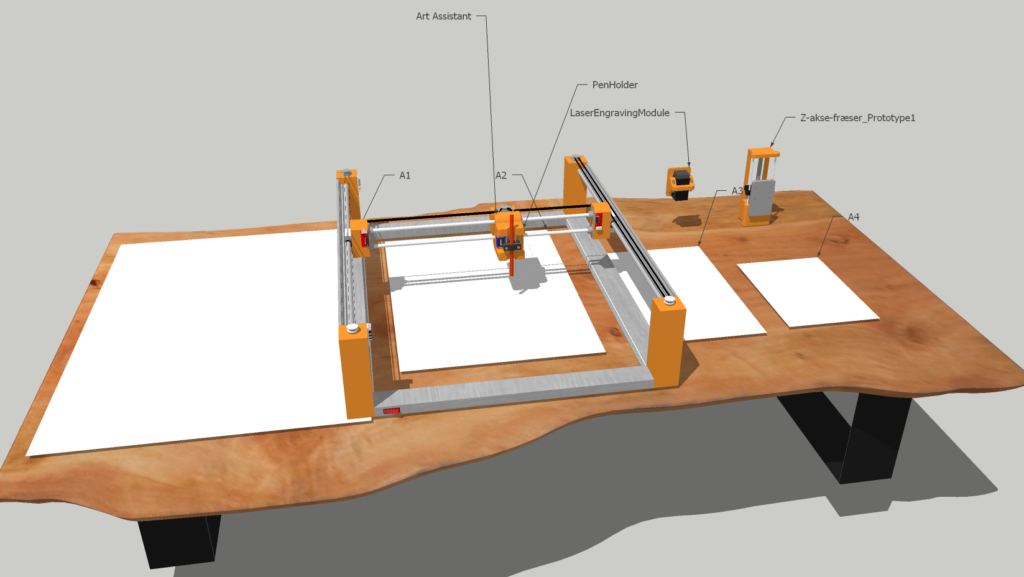

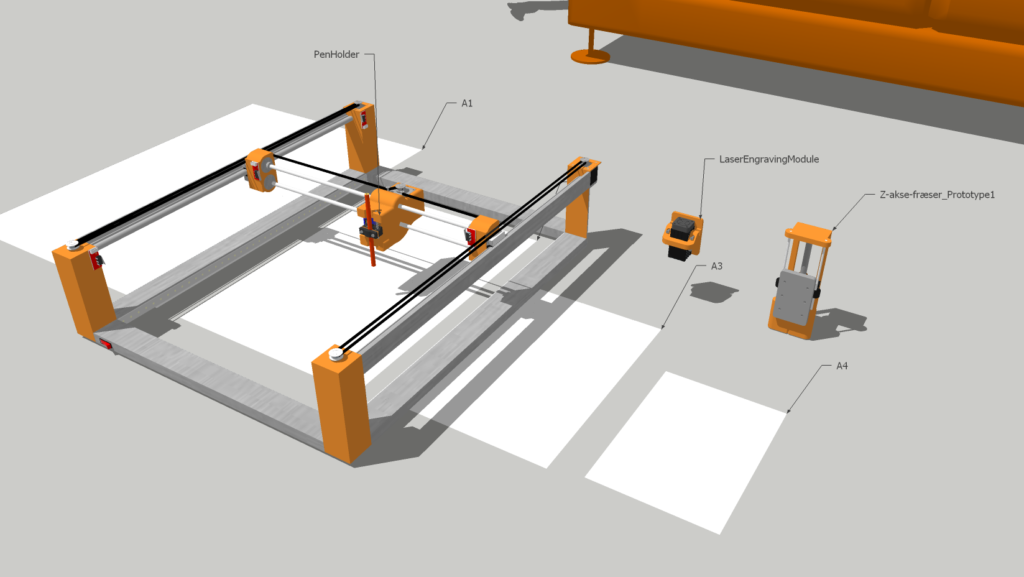

Mockup of the initial idea
